Dual display two-way thermostat, with mode switching between cool and heat.

Temperature can be controlled by setting the temperature set value and the difference

value.

Features:

Temperature calibration, Refrigerating control output delay protection, Alarm

when temperature exceeds temperature limit or when there is a sensor error.

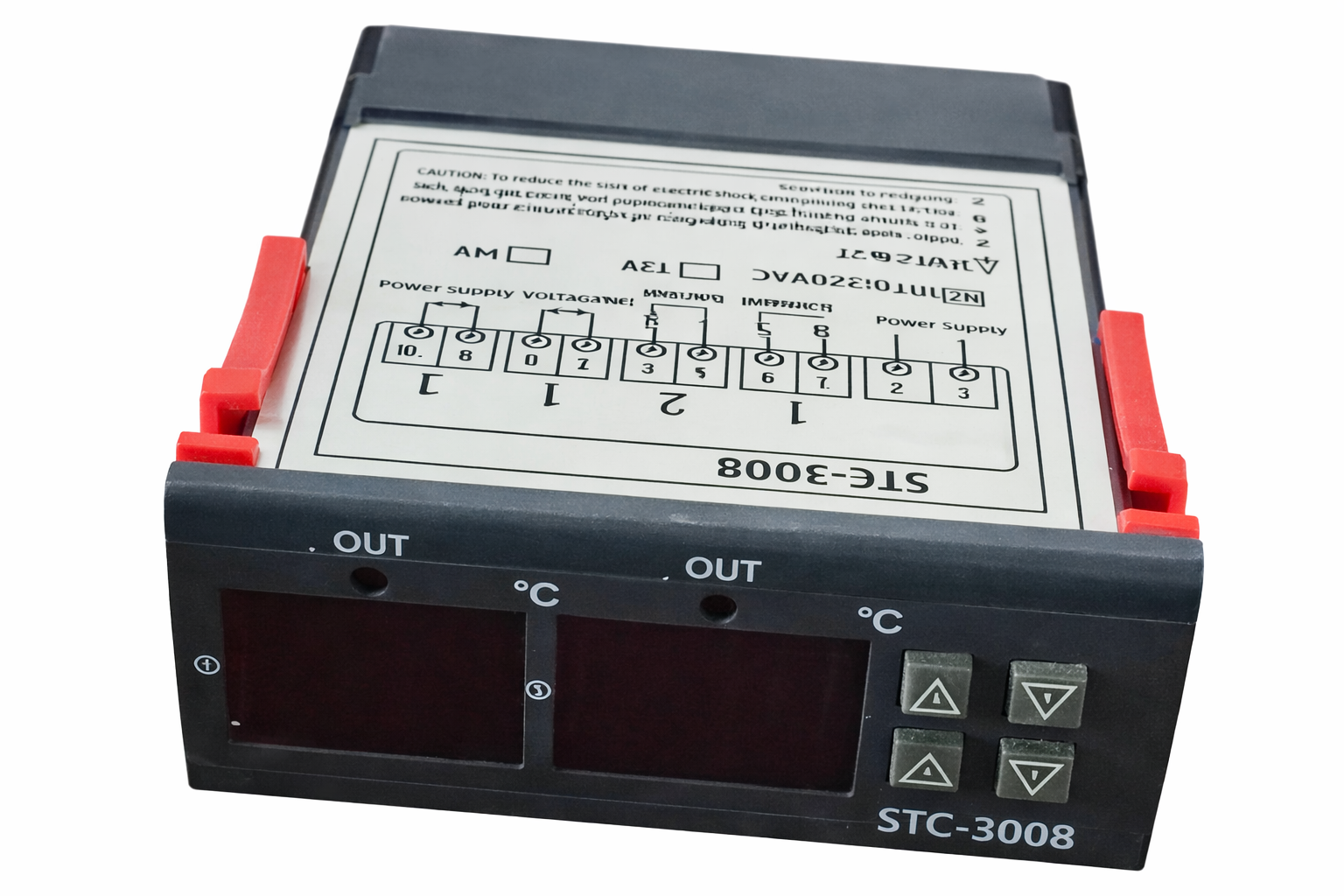

STC-3008 is a versatile temperature controller that features a dual-display thermostat with dual temperature measurement and a 10a relay Output (No, Common). The NTC temperature sensor has a range of -50 °c to 110°c and operates on a 12v DC supply. The temperature controller has the characteristics of high precision, high sensitivity, and high stability. Supports temperature correction and supports energy loss with control temperature by setting the temperature setting value and the difference value. It also features with alarm when the temperature exceeds the temperature limit or when a sensor error occurs.

STC-3008 is designed with a high-performance and durable housing with easy-to-install panel mounting. Can be directly mounted in industrial panel cutouts. This controller switches the relay on and off based on a temperature set point. The relay can be used to control loads like heaters, coolers, pumps, etc. The set points can be programmed onboard using the display and keypad. Multiple modes can be used, like turning on the relay after setpoint, below setpoint, between specific temperature ranges, delay, etc.
